ICS-G24044X-24PH

  • ICS-G24044X-24PH
  • CTC Union

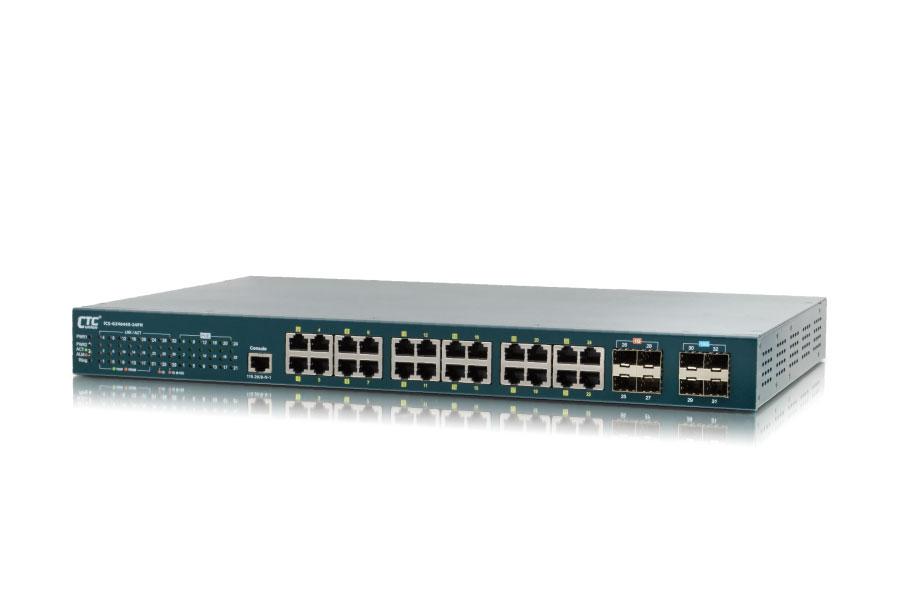

ICS-G24044X-24PH is a hardened L2 managed core switch which also supports PoE+/PSE for rigorous demands of centralize and critical applications.

  • Maximum up to 24x IEEE 802.3af / 802.3at PoE+ output, 30W per port, 400W PoE power budget in total
  • Redundant dual input power 48VDC (44~57VDC)
  • Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
  • μ-Ring redundancy, recovery time <20ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration*
  • Supports SmartView for Centralized Management*

ICS-G24044X-24PH is a hardened L2 managed core switch which also supports PoE+/PSE for rigorous demands of centralize and critical applications. ICS-G24044X-24PH supports 4 uplink ports with 10GbE SFP+ and 24 GbE (10/100/1000BaseTX) PoE+ RJ-45 ports plus 4 dual speed (100/1000Base-X) SFP fiber optical slots. ICS-G24044X-24PH is an ideal solution for Smart City, surveillance, Intelligent traffic control systems and production automation applications and supports up to 24 PoE/PoE+ (IEEE 802.3af/IEEE 802.3at) ports which can provide 15.4/30watts power output per port for connecting with heavy-duty industrial PoE devices, such as PTZ IP surveillance cameras, high-performance wireless access points, digital signage and IP phones. The ICS-G24044X-24PH is designed especially for harsh outdoor cabinet applications with 4kV surge protection to ensure the uninterrupted reliability of PoE systems.



Bình luận

Sản phẩm cùng loại

ICS-G24044X-24PH

ICS-G24044X-24PH

ICS-G24044X-24PH is a hardened L2 managed core switch which also supports PoE+/PSE for rigorous demands of centralize and critical applications.

  • Maximum up to 24x IEEE 802.3af / 802.3at PoE+ output, 30W per port, 400W PoE power budget in total
  • Redundant dual input power 48VDC (44~57VDC)
  • Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
  • μ-Ring redundancy, recovery time <20ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration*
  • Supports SmartView for Centralized Management*
Mua hàng
ICS-G24S4X, ICS-G24S2X

ICS-G24S4X, ICS-G24S2X

ICS-G24S4X & ICS-G24S2X are industrial grade, hardened design, managed L2+ switches, equipped with 20 GbE SFP ports plus 4 combo GbE ports and 2 or 4 10GbE SFP+ uplink ports.

  • Redundancy isolated low voltage 24/48VDC, or/and isolated High voltage (110/220VAC) power inputs
  • STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
  • Provides 14 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 14 rings in one device
    (Please see CTC Union μ-Ring white paper for more details and more topology application)
  • μ-Ring for Redundant Cabling, recovery time<50ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration*
  • Supports SmartView for Centralized Management*
Mua hàng
ICS-G4804X, ICS-G24044X

ICS-G4804X, ICS-G24044X

ICS-G4804X & ICS-G24044X are industrial grade, hardened design, managed L2+ switches, built for the rigorous demands of centralized and critical applications.

  • Redundant isolated 24/48VDC, or/and isolated 110/220VAC power inputs
  • Supports negative voltage power input
  • 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
  • STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
  • Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
  • μ-Ring redundancy, recovery time <20ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration*
  • Supports SmartView for Centralized Management*
Mua hàng
